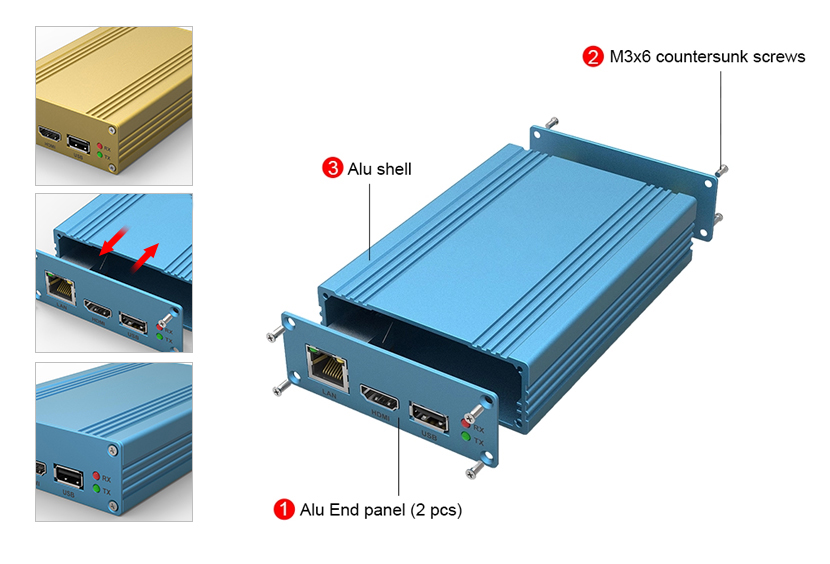

The enclosure is composed of three parts: shell+ front/rear panels+ 8 crews, adopted the AL6063S materials.The internal card slot
designis easy for pcb assembly installation. It is widely used in equipment for communication, medical, teaching experiment,
environmental monitoring and testing, industrial control,rail transit, vehicle terminal, security and protection, electronics,
instrument and meter industrial
1.Designed to house P.C.boards or equipment
2.General Purpose,water-Tight,EMI shielded,or Heat Dissipation Options
3.Sandblast and brushed surface finishing options,Anodized color

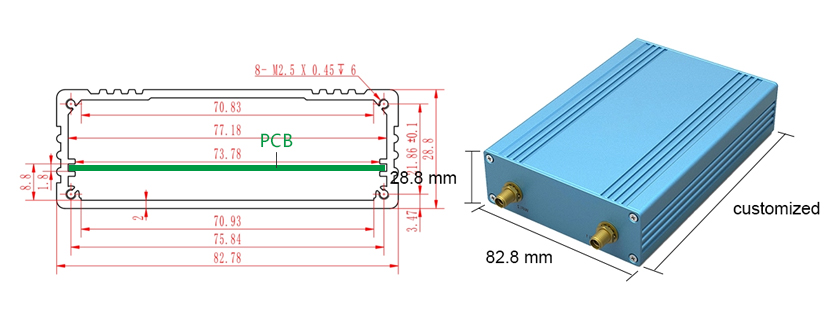

4.P.C.boards mount horizontally by sliding into internal slots extruded into the enclosure body
5.Acceptable for customization:Length,cuouts,milling,L shape and panels option,thickness and panel
option,silkscreen or engraving option

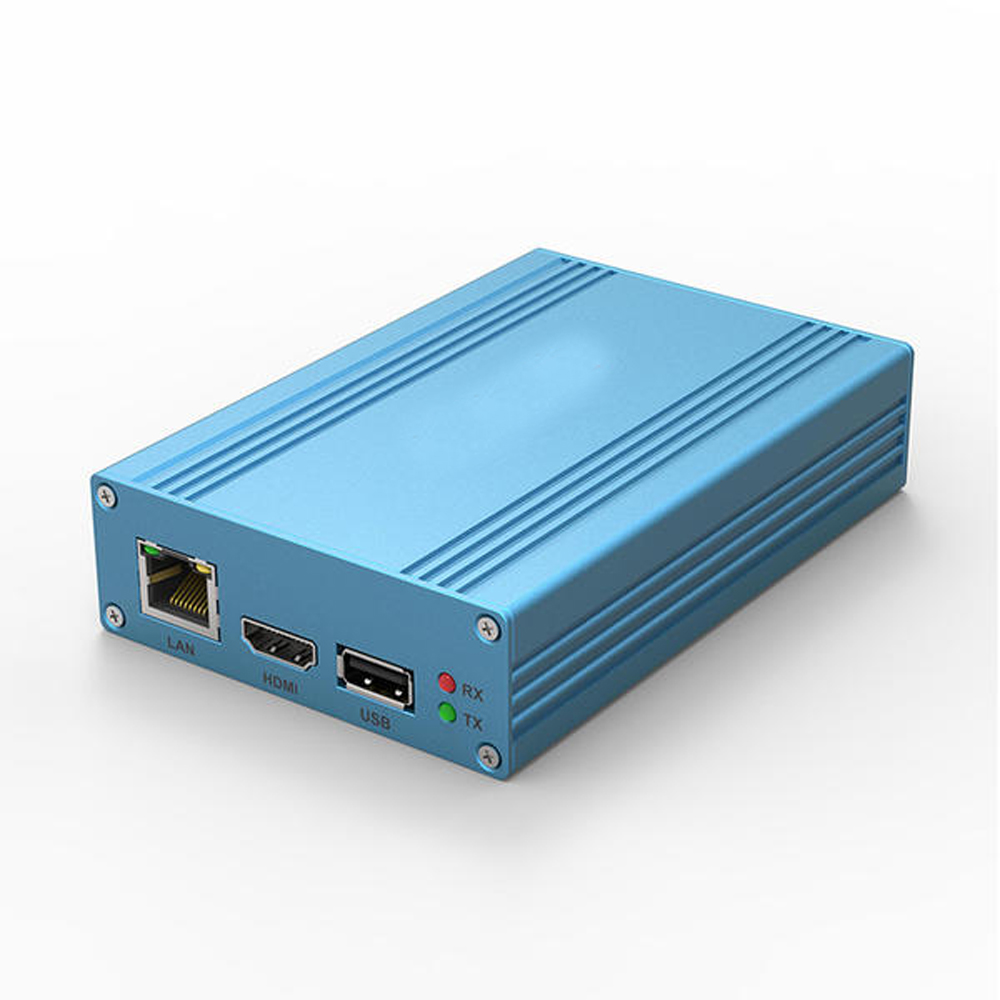

Product Name： Waterproof Aluminum Enclosure
Color Customization：Gold, blue, black, silver, yellow, white, red, etc.
Surface Treatment：Brush, sandblast, anodize, silk-screen print
Type：Drilling, Etching / Chemical Machining, Laser Machining, Milling
CNC Machining Or Not： CNC Machining
Micro Machining Or Not：Micro Machining
Optional Service：3 4 5 6 Axis CNC Machining Service
Optional customized service：Length/holes milling/flange/silkscreen/engraving/colors
We offered customized service for changeable width, height, length, designing service for outer surface, structure and
CMF, which help to be good and fashionable style. With advanced on site and information management, complying with
complete process for milling and carving, we could meet more strict requirements production and finishing for enclosures.
1. Are we factory?
Yes,Our factory is in Zhejiang and Foshan,,our sales department is in Shenzhen
2. What format needed for the drawing of customized enclosure?
Cutout drawing:CAD/PDF format
Silkscreen priting,sticker,laser carve drawing:PDF/CDR format
3. What custom service do we provide?
Drill holes,silkscreen,sticker,change color,laser carve,acrylic plate, Brush oil, pvc lable, open mold, UV protection etc.
4. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
5. what can you buy from us?
Electronic Equipment Enclosure (Plastic Enclosure,Aluminum Enclosure,Iron Case)
6. why should you buy from us not from other suppliers?
1)Advantages: Small orders and DIY design
2) Customizing processing and developing customizable private mold
3) design 3D Drawings drafts for customers
4)Help customers to design the products structure and appearance
5) Lead time is short.
